Apeks technical and recreational range in Thailand

WSX Sidemount Harness

<<  Back to the BCD page
RRP 33,990  ฿
RRP 35,490  ฿


Image of Apeks WSX-25 Sidemount Harness Image of Apeks WSX-25 Sidemount Harness Image of Apeks WSX-25 Sidemount Harness
Image of Apeks WSX-25 Sidemount Harness Image of Apeks WSX-25 Sidemount Harness Image of Apeks WSX-25 Sidemount Harness
Image of Apeks WSX-25 Sidemount Harness Image of Apeks WSX-25 Sidemount Harness

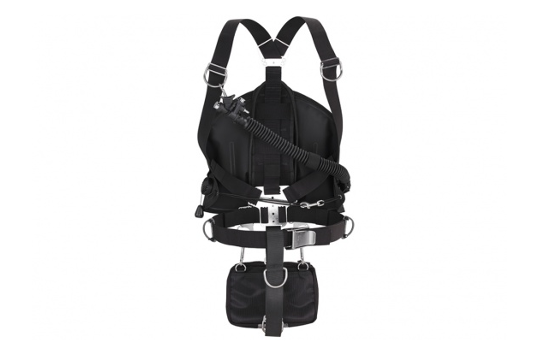

Apeks, the company that produces the premiere line of technical dive gear, offers you a top of the line sidemount harness system. The WSX is a feature rich, complete sidemount harness system. The WSX comes complete with either a 25lbs or 45lbs bladder, harness with crotch strap, D-rings, bungee and accessory butt pack.

The bladder is constructed from Armoguard, a super-tough material normally found in public safety diving and military products. This smooth material is ten times more abrasion resistant than standard Cordura (the material used on many other sidemount harness bladders), making this a wing designed with serious sidemount diving in mind.

The Apeks “SlideLock” sliding D-ring is brand new and unique to Apeks. It allows the diver to easily change the position of the cylinders as their buoyancy changes during the dive. No need to clip your cylinder on and off, simply adjust the position of the D-ring during your dive.

The two-piece plate system is adjustable to nearly any torso length, making this a one size fits all system. The system also has individual webbing sections rather than one long piece running through the harness, which means the complete system can be quickly and easily adjusted.

  Features & BenefitsSpecifications
  • WSX-25 (25lbs lift), WSX-45 (45lbs lift)
  • Armoguard exterior
  • Additional protective layer of Armoguard protects the bladder against abrasions in confined spaces
  • Reversible inflator can be mounted on left or right side
  • Grommets at lower corners allow for mounting bungee to keep the bladder streamlined to your body

  • Solid 2” (5cm) webbing comes pre-assembled
  • Removable crotch strap made of 2” (5cm) soft webbing
  • 4x two inch stainless steel D-rings (2 angled on shoulders, 1 angled and 1 flat on the crotch strap)
  • 2x “SlideLock” sliding stainless steel D-rings on waist strap allow for easy adjustment of cylinders throughout the dive
  • 2x stainless steel drop D-rings along the lower back are for connection to the the included butt pack, or for marker buoys, reels or other accessories
  • Heavy-duty waist buckle made of stainless steel
  • Two-piece stainless steel plate allows the torso length to be adjusted to fit any diver

Zippered Butt Pack with stainless steel snap hooks included

Weight pouches are mounted on the spine strap and hold over 18lbs (9kgs) of weight

Comes complete with two sizes of bungee and five stainless steel bolt snaps

Two grommet strips allow the diver to adjust the weight pouch and bladder based on their specific requirements

Redundant Bladders
  The WSX sidemount system now has a redundant option with the release of the new Apeks WSX redundant bladders. The bladders are cut to the same dimensions as the WSX-25/45 bladders and are made from the same ultra durable Armoguard material.They are designed to be mounted between the harness and bladder and have reversible inflators allowing the primary and backup inflators to be routed on opposite sides.

Bladder Material



 One size fits all

Plate System

 Two piece stainless steel


 Stainless steel / total of 6

Waist buckle

 Stainless steel

 Accessory butt pack


 Airway holddown

 Bungee with bolt snap

 Crotch strap

 Yes, removable


 Yes, 2 sizes of bungee are included

 Weight pouch

 3x 3kgs (18lbs)

 Grommet strip

 2 included
