Apeks technical and recreational range in Thailand
Technical


Apeks DS4 1st Stage Regulator

<<  Back to the Regulator Page

RRP 7,790  ฿

Dry sealed system for cold water.

No turret.

4 medium pressure ports 3/8 UNF

1 high pressure port 7/16 UNF

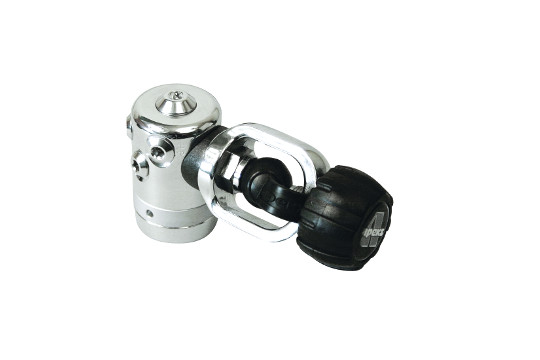

Image of Apeks scuba diving regulator DS4 First Stage


As the diver descends the demand for air increases. To maintain the supply, the intermediate pressure increases relative to the water depth. In this dry sealed system hydrostatic pressure, acting on the outer sealing diaphragm, is transmitted to the primary diaphragm via the load transmitter. This first stage utilizes a unique over-tracking (over-balanced) diaphragm design, where the intermediate pressure supplied to the second stage increases more than traditional balanced models, as the diver descends to greater depths. The result is superior breathing performance regardless of depth.


All first stages are available in both DIN and A clamp versions.

Technical information and illustrations...
