XTX50 Regulator

XTX50 Regulator

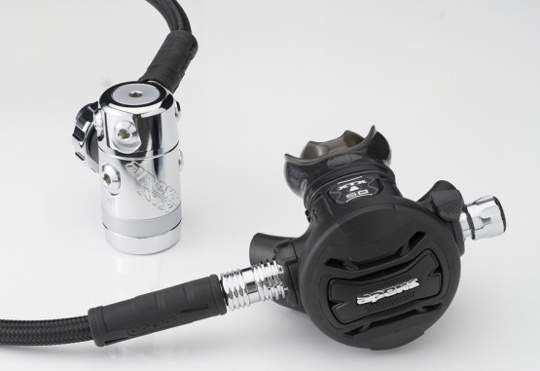

The XTX50 is for the discerning diver who wants the benefits of a feature-rich regulator at a moderate price. This popular regulator has four medium-pressure ports all mounted on a rotating turret, resulting in optimal hose routing while eliminating sharp bends in the hose.



Features & Benefits

Four medium-pressure ports all mounted on a rotating turret. This results in optimal hose routing while eliminating sharp bends in the hose.

Features an innovative Diver Changeable Exhaust system (DCE). This system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. This gives the user a choice, wider exhaust tee for minimal bubble interference (essential for underwater photography) and narrow exhaust tee for a smaller compact comfortable regulator. The regulator is supplied with both sets of exhaust tees.

Optional 5th port is available for sidemount or twin cylinder set ups.

Can be converted from a right-handed hose configuration to a left-handed one. The process of changing the regulator to a left-handed configuration is both quick and simple. However this procedure must ONLY be performed by an APEKS Authorised Service Technician.

Available in yoke or DIN configuration.

Braided flexi-hoses are now standard on all models. These hoses are lighter weight, more flexible and more durable.

Suitable for coldwater use (below 10 C / 50 F).

Compatible with EAN40 out of the box.

First Stage:

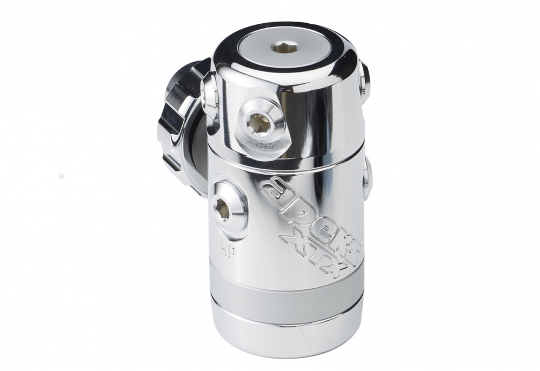

  • Uses the DST first stage
  • Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
  • 2 HP ports and 4 MP ports on a rotating turret are angled for optimum hose routing
  • An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out.

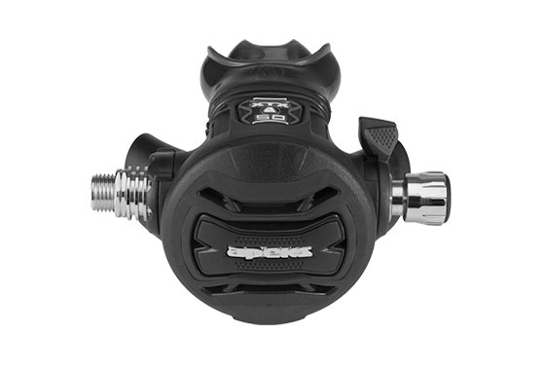

Second Stage

  • Pneumatically-balanced second stage results in smooth, easy breathing.
  • The XTX purge buttons are large and easy to operate. A 2-stage progressive purge is used - press the purge on the side for a lower flow rate, useful where more control is required such as filling lift bags etc, then press in the centre for the full effect of the purge, i.e. when regulator clearing etc.
  • The large venturi lever has a soft touch rubber grip, which makes it easier to locate and use. The lever reduces the amount of grit ingress and therefore resists any possible friction giving a smooth operation.
  • Easy-to-grip opening effort control knob keeps the diver in control.
  • The second stage is manufactured with active protection against infection as all molded parts are produced with an additive that kills MRSA, protects against E-Coli, bacteria and fungi, and is also very effective against viruses, mould, yeast and algae.
  • A silicone exhaust valve improves the breathing performance of the regulator.
  • The Comfo-bite mouthpiece virtually eliminates jaw-fatigue.
  • A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
Specifications

Connections

Yoke and DIN available

Type of first stage


Over-balanced diaphragm design, environmentally sealed

Body Type

MP ports mounted on swivel turret

Number of HP ports

2 (7/16" UNF)

Number of MP ports

4 with 5th port option (3/8" UNF)

Environmental Dry Kit

Standard

First stage exterior

Chrome over marine brass

Orientation

Convertible LH or RH

Coldwater Use

Yes

Type of second stage

Pneumatically balanced

Opening Effort Control Knob

Yes


Integrated Venturi Lever

Yes


Mouthpiece

Comfo-bite

Exhaust tee


Diver Changeable - comes with 2 sets

Heat Exchanger for freezing resistance

Yes


Hose type

Braided Flexi-hose

Overall work of breathing (WOB) scores

Avg. 0.70 joules/liter


Nitrox compatible


Yes to 40% O2 when new, out of the box / Can be cleaned to 100%

Weight

Yoke 1269g / DIN 1139g



Prices
20% discount


All configurations available in either Yoke or DIN

XTX50 Regulator

RRP  38,690 ฿


1 and 2 gauge consoles come with HP hose rubber. For optional low diameter HP-flex hose please add 400 ฿.
