EVX TUNGSTEN REGULATOR

Features & Benefits

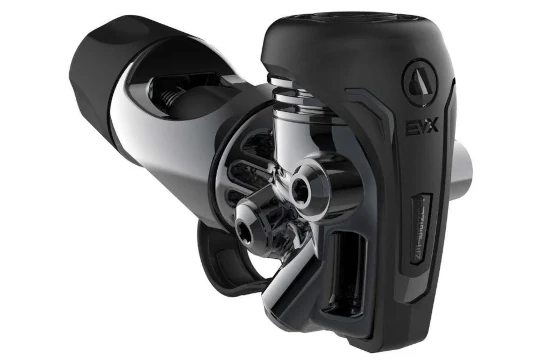

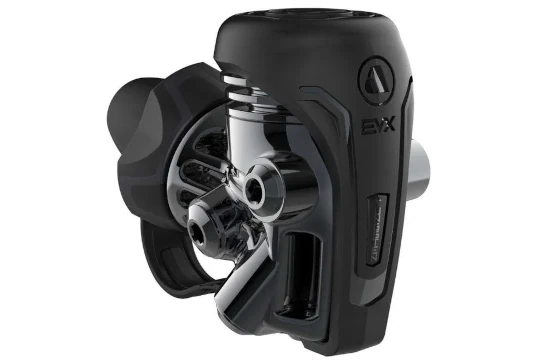

First Stage:

• PVD coated brass body with heat exchanging ribs for maximum thermal performance.
• Ribbed diaphragm clamp for improved heat exchange in cold water conditions.
• Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
• ACD system prevents water ingress.
• 5 x medium pressure ports for improved hose orientation, 2 x angled high pressure ports for optimal hose routing and fitting of transmitters.
• Double swivel hose for greater freedom of movement and comfort.
• Yoke (232 bar) and DIN (300 bar) connections available.

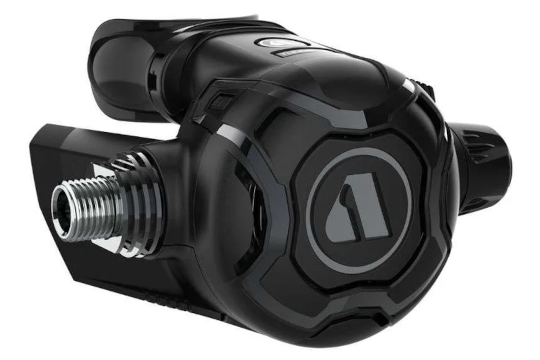

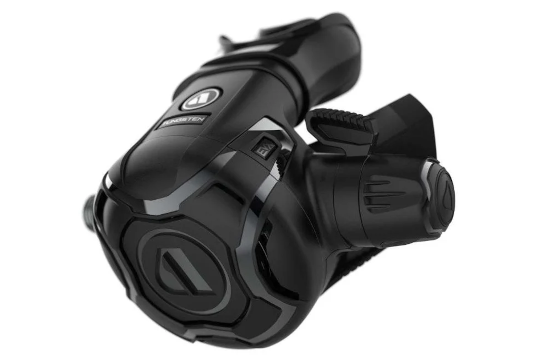

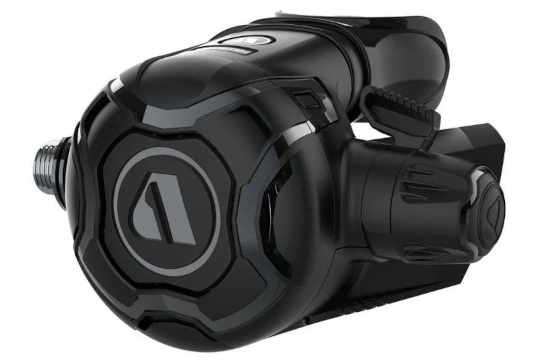

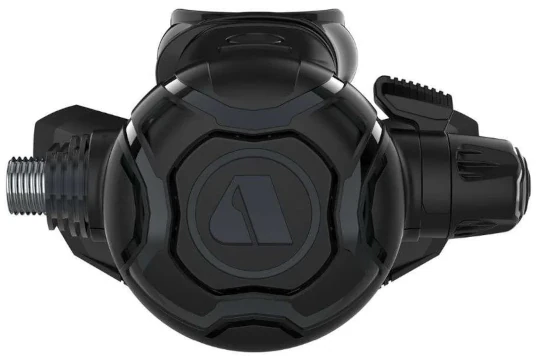

Second Stage

• Ergonomic and simple to use venturi lever.
• Large breathing effort adjuster makes adjustment easy in cold water whilst wearing gloves.
• Laminar flow valve.
• 2 stage progressive purge button.
• Reversible second stage for either a left or right hand gas supply configuration.
• A heat exchanger dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water for a more comfortable breathe.
• Features an innovative Diver Changeable Exhaust system (DCE). The system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. The regulator is supplied with both sets of exhaust tees.
• Comfo-bite mouthpiece
• Flexible nylon braided hose, which has better cold water performance than traditional rubber hose.
• Designed and manufactured in the UK.
